Description
- DC voltage Range / Resolution: 400 mV / 0.1 mV, 4.000 V / 1 mV, 40.00 V / 10 mV, 400.0 V / 100 mV, 600 V / 1 V, Accuracy: ± (0.8 % of mv + 3 Digit); AC voltage range / Resolution: 400 mV / 0.1 mV, 4.000 V / 1 mV, 40.00 V / 10 mV, 400.0 V / 100 mV, 600 V / 1 V, Accuracy: ± (1.0 % of mv + 3 Digit) DC current Range / Resolution: 4 A / 1 mA, 10 A / 10 mA, Accuracy: ± (1.5 % of mv + 5 Digit); AC current Range / Resolution: 4 A / 1 mA, 10 A / 10 mA, Accuracy: ± (1.5 % of mv + 5 Digit); Resistance Range / Resolution: 400.0 Ohm / 0.1 Ohm, 4.000 kOhm / 1 Ohm, 40.00 kOhm / 10 Ohm, 400.0 kOhm / 100 Ohm, 4.000 MOhm / 1 kOhm, 40.00 MOhm / 10 kOhm, Accuracy: ± (1.5 % of mv + 3 Digit) Capacitance Range / Resolution: 51.20 nF / 0.01 nF, 512.0 nF / 0.1 nF, 5.120 μF / 0.001 μF, 51.20 μF / 0.01 μF, 100.0 μF / 0.1 μF, Accuracy: ± (1.5 % of mv + 5 Digit); Frequency Range / Resolution: 5.120 Hz / 0.001 Hz, 51.20 Hz / 0.01 Hz, 512.0 Hz / 0.1 Hz, 5.120 kHz / 1 Hz, 51.20 kHz / 10 Hz, 512.0 kHz / 100 Hz, Accuracy: ± (0.1 % + 1 Digit) Instrument Measurement Functions: Diode test: yes, Continuity testing: yes, Display ligthing: yes, Hold: yes, MinMax: yes, Display (counts): 4,000 Operating temperature: -10 to +50 °C; Storage temperature: -15 to +60 °C; Overvoltage Category: CAT III 600V; CAT IV 300V; Protection class: IP64; Authorizations: CSA, TÜV, CE

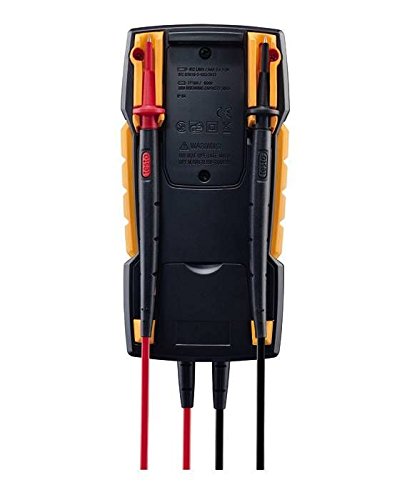

0590 7601 760-1 Digital Multimeter, 2" Height, 3" Width, 7" Length
