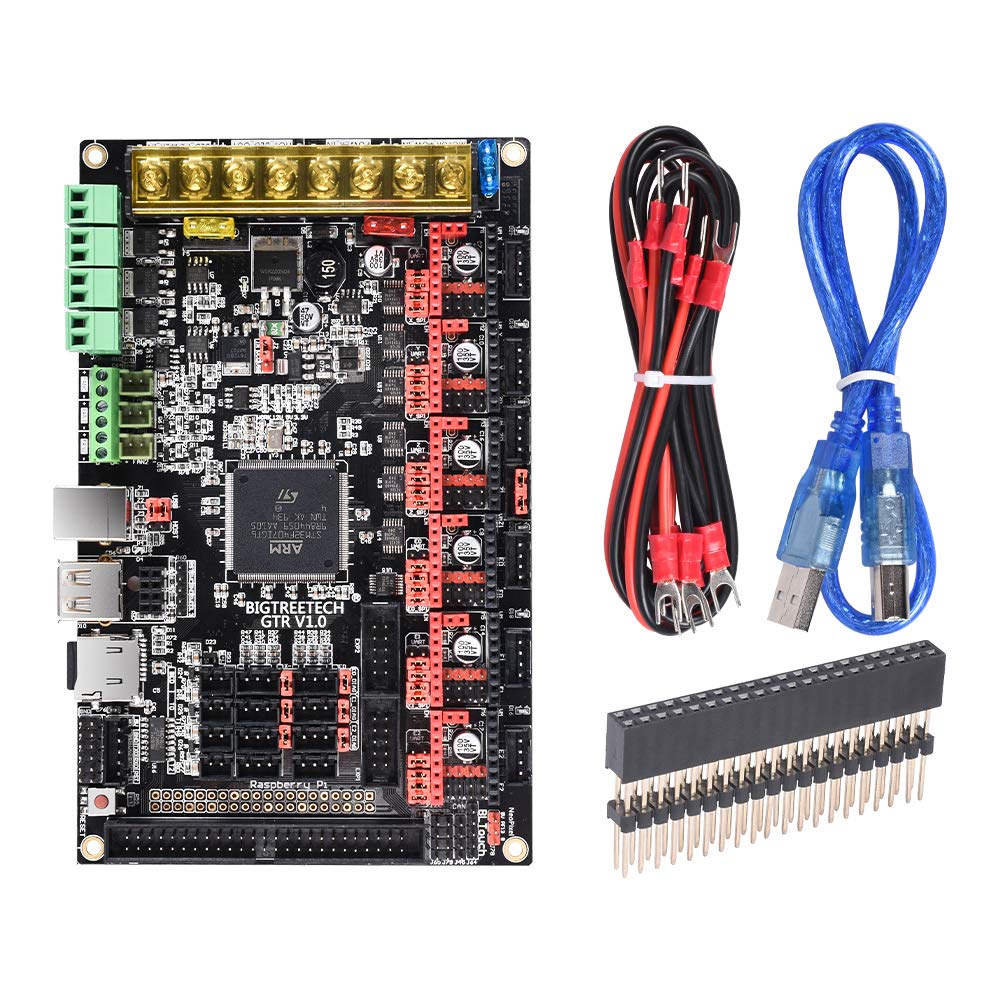

BIGTREETECH GTR-V1.0:
1. Equipped with the highly modular open source firmware Marlin 2.0.
Marlin 2.0 uses powerful development tools and Visual Studio Code integrated development environment.
supports online debugging,
which is more helpful for product development and performance optimization,
and uses C / C ++ language development.
2. Using pluggable fuses, making the replacement process easier.
3. Adopt high-performance MOSFET tube for better heat dissipation effect.
4. 6 motor drivers，3 extruders，3 CNC fans.
5. Support serial WIFI printing.
6. Support Chinese Simplified, English and other languages, which can be switched on your own.
7. Adopt special power supply chip, support 12-24V power input, output current is 3A.
8. Support all BIGTREETECH TFT touch screens, support LCD2004, LCD12864 screen.
9. Upgrade and configure firmware via SD card, simple and efficient operation.
10. It can accept 24V input and reduce the hot bed current to 1/4 under the same power,
effectively solving the heating problem of hot bed MOS tube.

GTR V1.0 controller board parameters
1) Appearance size： 165*103mm
2) Installation size： 157*95mm
3) Microprocessor： ARM 32-bit Cortex-M4 CPU
4) Input voltage： DC12V--DC24V
5) Motor driver: Support TMC5160、TMC2208、TMC2209、
TMC2130、ST820、 LV8729、DRV8825、A4988 etc
6) Driver working mode support： TMC2130SPI、TMC5160SPI、TMC2208 UART.

Manufacturer	BIGTREETECH
Part number	KINGPRINT-ZZB000391
Item Weight	350 g
Package Dimensions	20.4 x 15.4 x 5.2 cm; 350 g
Item model number	GTR V1.0
Batteries included?	No
Batteries Required?	No

BIGTREETECH GTR V1.0 Control Board 32bit 3D Printer Motherboard Compatible with TFT35 E3 V3.0 12864LCD Screen Support TMC2209 driver TMC5160 TMC2208 TMC2130
