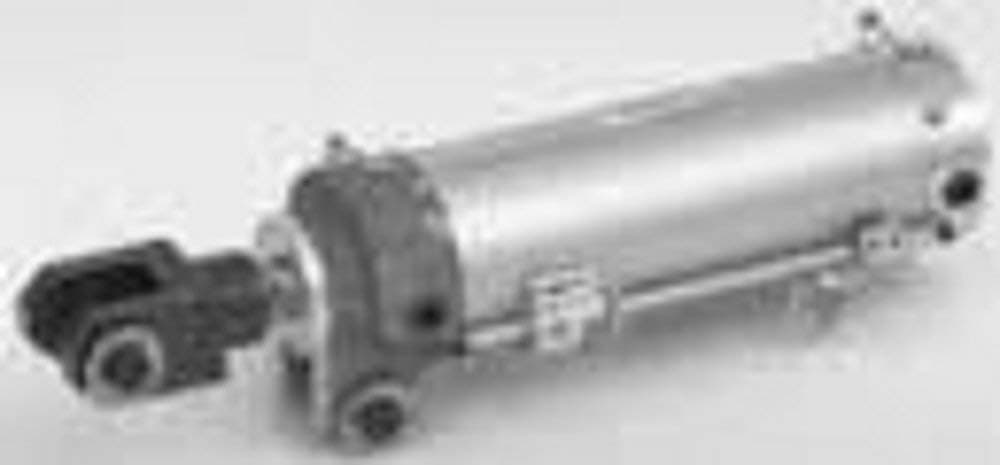

CKD CAC3-A-63-50-Y1 Air Pneumatic Position Locking Clamp Cylinder, 63mm Bore

الوصف

Series: CAC3 Clamp Cylinder with Rod Clevis and Clevis Bracket; Switch: Without Switch; Activation Type: Double Acting; Working Fluid: Compressed Air; Max Working Pressure (MPa): 1.0; Min Working Pressure (MPa): 0.1; Withstanding Pressure (MPa): 1.6; Ambient Temperature (C): 5 to 60; Port Size (Inch): RC 1/4; Stroke Length (mm): 100; Working Piston Speed (mm/s): 50 to 300; Cushion: Air Cushioned; Effective Cushion Length (mm): 13.5; Lubrication: Not required (when lubrication, use turbine oil ISO VG32.); Mounting Style: Clevis; Accessory: Rod Clevis Steel
