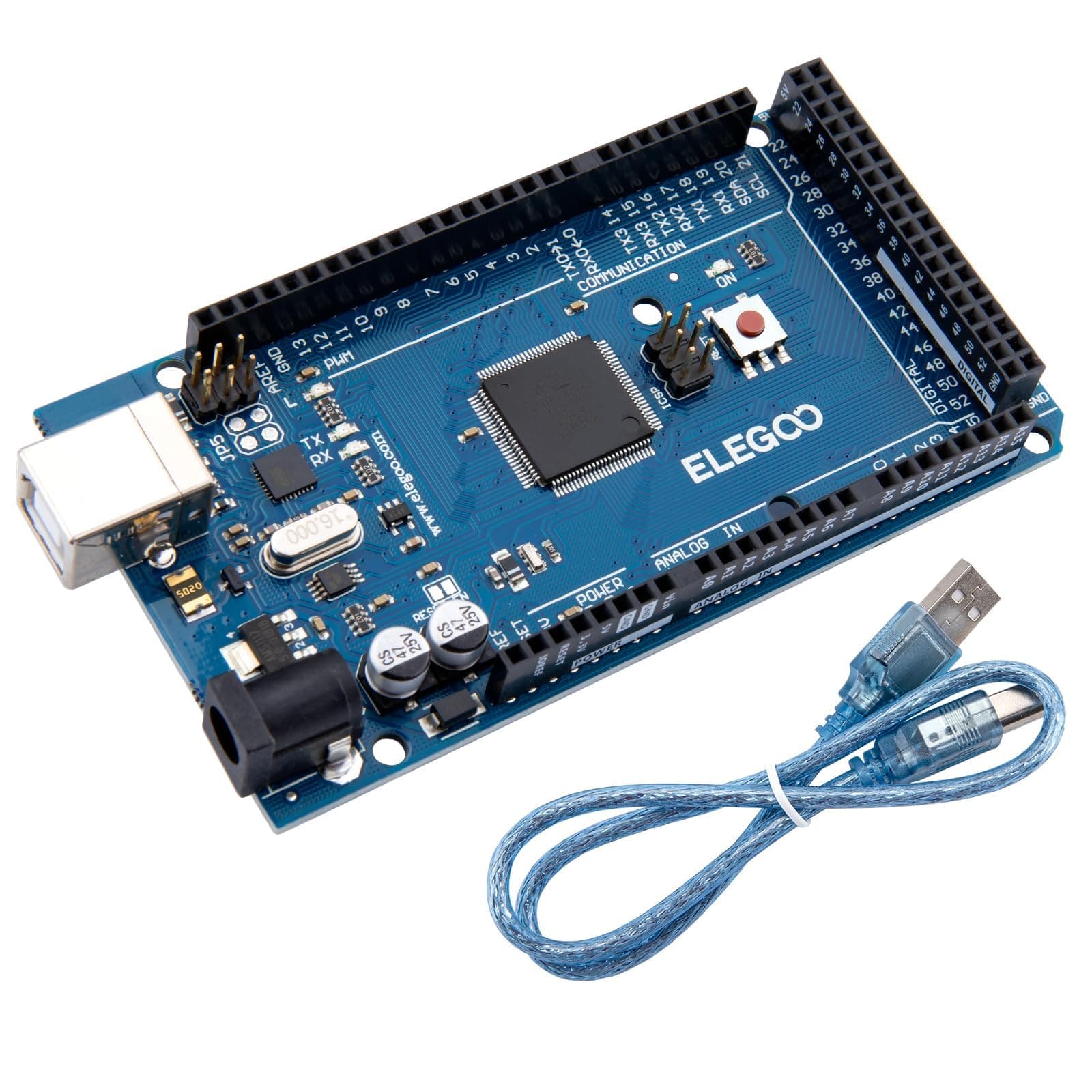

Elegoo MEGA 2560 R3 Board ATmega2560 ATMEGA16U2 + USB Cable Compatible With Arduino

الوصف

Product Description Elegoo MEGA 2560 R3 Board ATmega2560 ATMEGA16U2 + USB Cable Compatible With Arduino Elegoo Mega 2560 R3 is an ATmega2560 microcontroller board. It would be an intelligent choice of the board for 3D printers, robotics projects and other projects with 54 digital I/O pins (of which 15 can be used as PWM outputs), 16 analog inputs and a larger space for your sketch. Simplification and Security The ATmega2560 on the Elegoo Mega 2560 comes preprogrammed with a bootloader that allows you to upload new code to it without the use of an external hardware programmer. The Mega 2560 has a re-settable fuse that protects your computer's USB ports from shorts and over-current. Although most computers provide their own internal protection, the fuse provides an extra layer of protection. If more than 500 MA is applied to the USB port, the fuse will automatically break the connection until the short or overload is removed. Compatible with ATmega 2560 Mega 2560 R3 is an ATmega2560 micro-controller board. It would be an intelligent choice of board for 3D printers, robotics projects and more other projects with 54 digital I/O pins (of which 15 can be used as PWM outputs), 16 analog inputs and a larger space for your sketch. Power Supply/Connection It provides everything needed to support the microcontroller. You will simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. Mega Pins Besides the 54 digital I/O pins and 16 analog inputs, it also has 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. Memory Store The ATmega2560 of Elegoo Mega 2560 R3 Controller Board has 256 KB of flash memory for storing code (of which 8 KB is used for the bootloader), 8 KB of Spram and 4 KB of EEPROM (which can be read and written with the EEPROM library). Diverse Power Methods The Elegoo Mega 2560 R3 can be powered via a USB connection or with an external power supply. The power source is selected automatically. External (non-USB) power can come either from an AC-to-DC adapter (wall-wart) or a battery. The adapter can be connected by plugging a 2.1mm center-positive plug into the board's power jack. Leads from a battery can be inserted in the GND and Vin pin headers of the POWER connector. Technical Specifications Microcontroller: ATmega2560 Controller chip: Atmega2560-16au and Atmega16u2 Operating Voltage: 5V ; Input: Voltage (recommended):7-9V Digital I/O Pins: 54 (of which 15 provide PWM output) Analog Input Pins: 16 DC Current per I/O Pin: 40 mA ; DC Current for 3.3V Pin: 50 mA Flash Memory: 256 KB of which 8 KB is used by the bootloader SRAM: 8 KB EEPROM: 4 KB Clock Speed: 16 MHz LED_BUILTIN: 13 Length: 101.5 mm Width: 53.3 mm Weight: 34 g Review: Arduino mega review - So good quality Review: Good product - Works great no issues so far, it's been more than an year.
