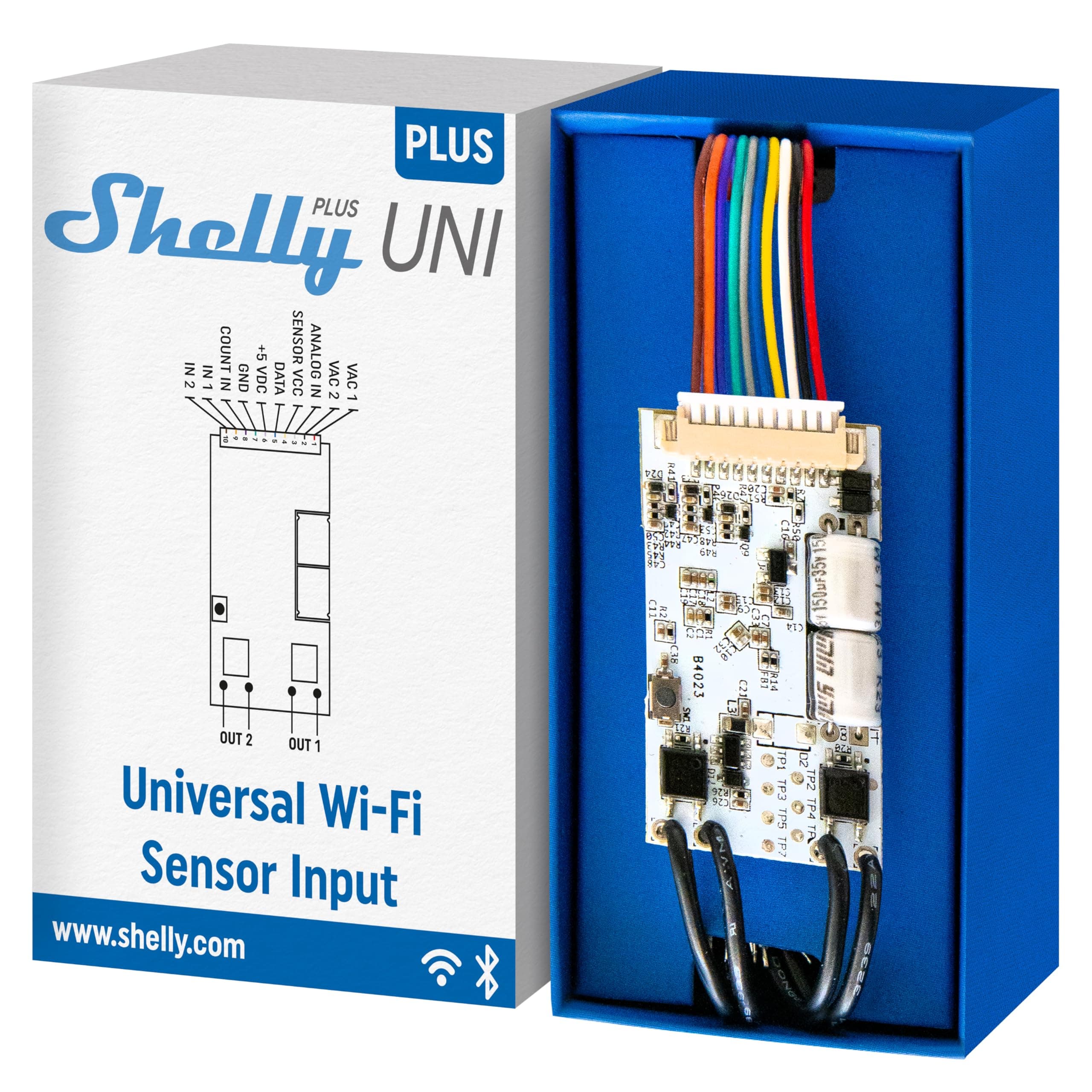

Plus Uni Smart Wi-Fi and Bluetooth Operated Module, Dry Contact

Ease to setup

Extremely pleased with Plus UNI devices I purchased. Using to remotely control (both automatically and manually) load transfer power relays between house mains and solar powered inverters; and monitor battery bank voltage. Was pleased that once router password was entered for the first device, others came online without having to reenter it.

Thankfully, I don't have wifi issues that I've read this could have, I have two working pretty good. If I had only one complaint, the wires and where they attach are pretty small, need to be very careful if soldering, or working with these wires that they don't break off. Mine didn't break, but they look like they could very easy.

My 3rd review: I am using the Uni to remote control a Yaesu G-800DXA rotor for an HF antenna. I’m happy to report that it is functioning reliably now performing this task. The first thing to do is update the firmware. The SS relays on the Uni drive the CW and CCW rotor controls and LED indicators that I added (PU to 5V via 1k) without issue. The 0V to 4.5V directional indicator voltage from the rotor go to the analog input of the Uni which I set for the 0-15V range. You have to enable this input. It comes with a counter enabled which I did not use and disabled. I calibrated this to give 0 to 100% for that voltage range and used the equation x*4.5 to get degrees. Set the threshold to 1 for best accuracy. The app breaks the CW and CCW momentary controls into two PBs. These work okay but there is no way to disallow both on at once. There is no combinational logic available (unless you experiment with some JS). I made the degrees reading appear as a separate device. Unfortunately, useful documentation is sorely lacking and menus are not very intuitive so, if you’re not familiar with the app, you have to waste a lot of time trying to figure out what’s where in addition to what’s possible. Overall, it works and it works remotely via the Internet, it’s the only off the shelf solution that I had found that met all of the requirements for this, and it’s quite inexpensive compared with more industrial solutions.

The options to power and use this module are so endless, it's well worth it. You could definitely put something together with ESPHome that would cost half the price, and that's what I almost did, but do you really want to spend hours tinkering rather than pay the extra $10 for a well-finished reliable solution that just works? In my particular case, I was trying to control an internal component of a hot tub that used 15 volts DC (what an awkward voltage), and using this module allowed me to power it directly from the same wires I was controlling, without the need for an external power supply. Super convenient. I also like that it has pretty much every integration under the sun, so I know that while I may want to control it directly with an app today, it will be able to connect to my Home Assistant instance in the future if I want more control.

I bought a Shelly Plus UNI for one incredibly simple purpose: remotely monitor the voltage of my RV’s 12V battery bank. After finally getting it configured, I can say the hardware does work. It’s currently reporting 13.5V accurately over Wi-Fi. Getting to that point, however, was ridiculous. The automatic device-add process repeatedly failed. I eventually had to connect directly to the Shelly’s access point, configure it manually through its local IP address, connect it to my Wi-Fi that way, and then fight with the Smart Control app to get the device added. Then it got even better: the app added the SAME physical device twice. I deleted the duplicate, and the app deleted BOTH entries. I added the device again, and—somehow—it created TWO entries again. So I now apparently own one Shelly Plus UNI and two copies of it in Shelly’s app. I’m reasonably comfortable with electronics and networking, and I eventually got everything working. But configuring a simple Wi-Fi voltage monitor should not require this much troubleshooting, manual network configuration, duplicate-device nonsense, and frustration. The hardware itself seems capable. The onboarding and app experience are awful.

It's like the Raspberry Pi of automation. The device is inexpensive and has a lot of features. The online information is scattered throughout the world so you may have to get up to speed a bit on them. For the simple task I needed this was great. I monitor battery in garage via wifi. The signal just sneaks out. I used a paint stirring stick to mount to.

Easy to connect to via BT or WiFi. BT requires the Shelly app, WiFi only needs your browser. These are very low power/performance so they take a bit to get online, that is to be expected, it performs as promised. The Rpi Pico is $7 cheaper. The difference is the Rpi requires you o be interested in having an understanding of programming rather than the Uni needing the ability to work through some confined scripting. If the Uni offered a deal on buying a few together I would have done that, guess they like their single item profit level more than they care for increased sales.

Il faut être ingénieur automaticien pour installer ce produit …

Facile à mettre en œuvre, prix correct

Exelente módulo,pero recomiendo que antes de usarlo investiguen bien sus características técnicas porque suelen ser un poco complicadas

Piccolo e funzionale. Usato per attivare 2 diversi comandi da remoto. Classica interfaccia shelly, connessione quasi istantanea e stabile, un sacco di opzioni. Integrazione ottima con Google Home Ovviamente richiede alimentatore, ma potenza assorbita irrisoria

o produto veio com defeito e ninguém respondeu a minha reclamação.
