RP2040-Tiny Development Board, Raspberry Pi Microcontroller Development Board, Based On Official RP2040 Dual Core Processor, USB Port Adapter Board Optional
1.RP2040-Tiny Development Board
Based On RP2040, USB Port Adapter Board Optional
2.Support C/C++, MicroPython, Arduino
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

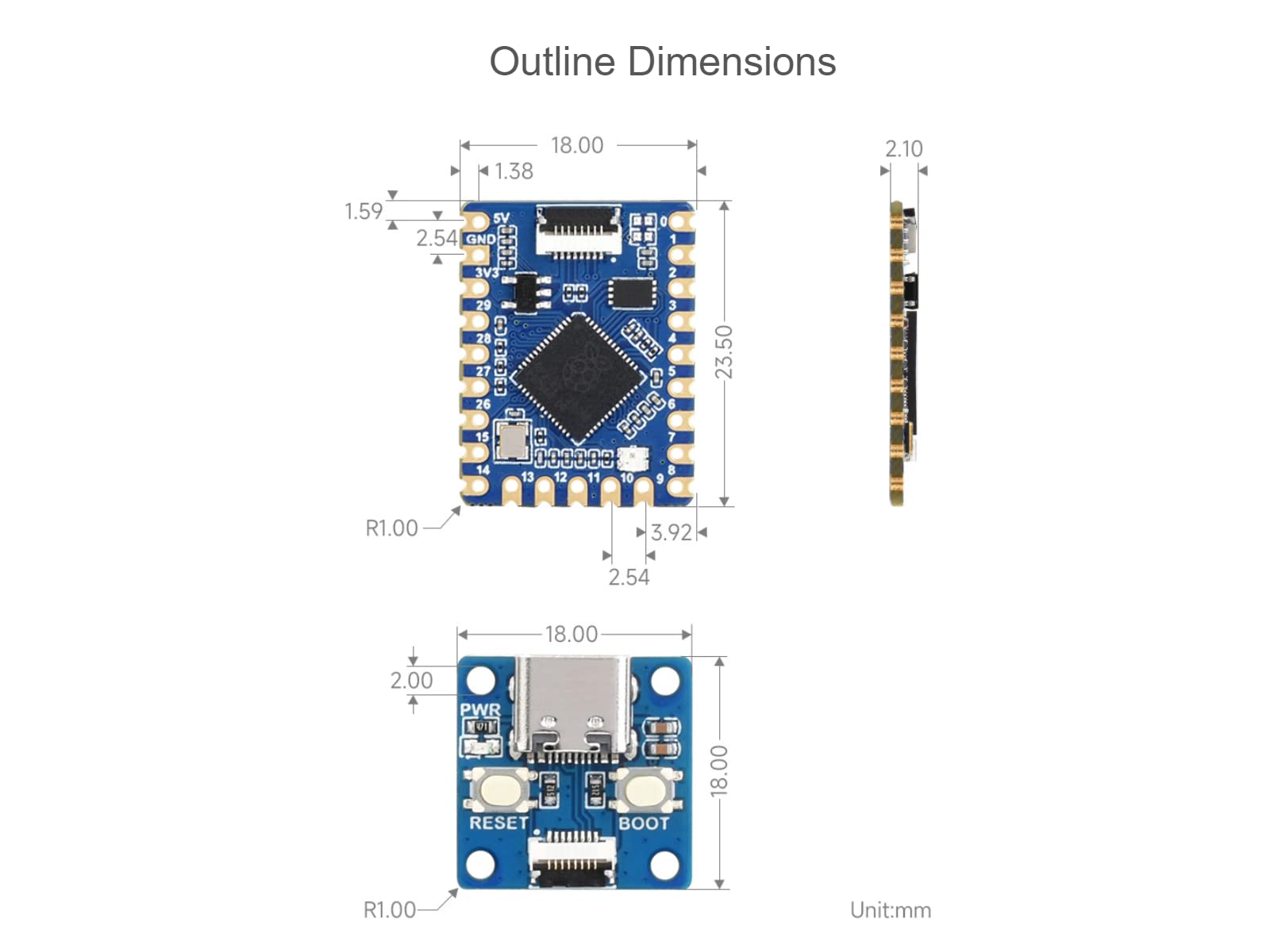

3.Compact Size, Separate Adapter Board Design
Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications
4.Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
5.20 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

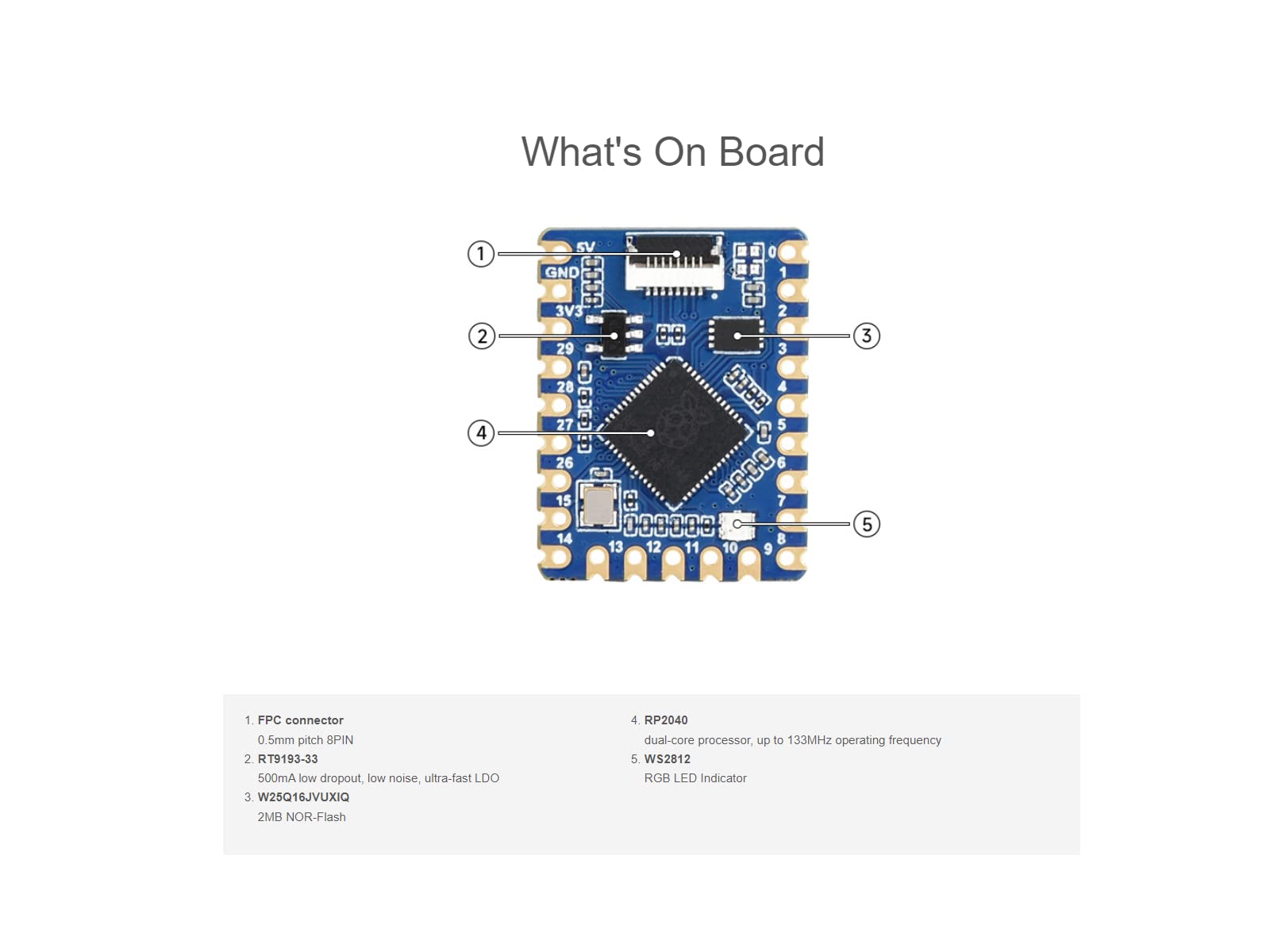

Board Specifications
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of onboard Flash memory
Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
20 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support

Development Resources
https://www.waveshare.com/wiki/RP2040-Tiny?

Package Content
RP2040-Tiny x1
OPTIONS RP2040-Tiny-Adapter x1
OPTIONS 8PIN FPC cable ~15cm x1

Brand	Waveshare
Package Dimensions	6.9 x 5 x 2.4 cm; 10 g
Item model number	RP2040-Tiny Board Kit
Manufacturer	Waveshare
Series	RP2040-Tiny
Processor Brand	Raspberry Pi
Processor Speed	133 MHz
Processor Count	2
Memory Technology	DDR
Wireless Type	Bluetooth
Operating System	Raspberry Pi OS
Are Batteries Included	No
Item Weight	10 g
Guaranteed software updates until	unknown

Waveshare RP2040-Tiny Mini Development Board Kit Based on Raspberry Pi Microcontroller RP2040, with USB Port Adapter Board and FPC cable,Support C/C++, MicroPython, Arduino
