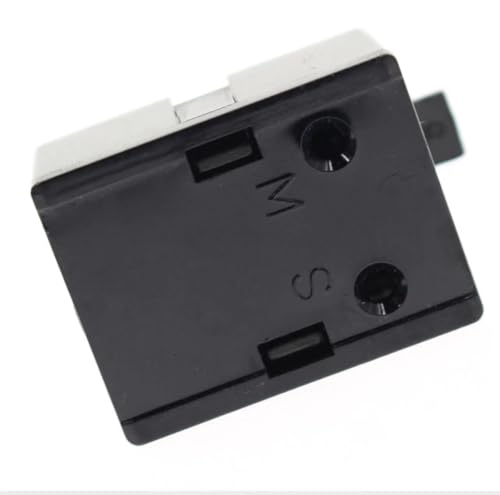

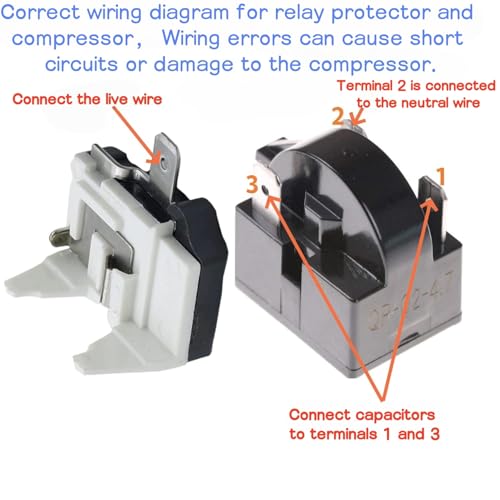

1Pcs QP-02-4.7 3Pin 4.7 Ohm Refrigerator Start Relay Coolers Compressor Starter with 1Pcs 1/2HP Refrigerator Overload Protector

This is a standard relay which should fit many applications. I could not find my particular relay but after confirming the 3-pin pattern and getting past the fact that the capacitor looked completely different I took a chance. This fit completely differently but worked right away. FYI: my fridge symptoms: The compressor stopped running, but the relay would click once then again about ten seconds later. The compressor remained hot. This behavior is described as the relay coming on, not completing the circuit, then shutting off when it got too hot. I removed the existing relay and capacitor and shook it - if it rattles, that's your problem. The relay contact is broken/burned and can no longer complete the circuit. Popped the new one on, plugged it in, and compressor started right up.

Worked like a charm in my Edgestar BR7001SS kegerator!

Purchased the day after my 3 year old apartment sized fridge went out. No longer getting cold in freezer or refrigerator. Googled and watched some You Tube videos and put the relay in myself. Saved me some time and money! Ladies you can do it too! Not very difficult!

These were purchased to repair my refrigerator. Unfortunately they did not but were useful in diagnosis of the problem .

I just needed the overload switch. The relay was a bit different with more taps, maybe for internal lighting of bigger models. I didn't use it. Tested one at a time and the overload bit that's got white plastic on it fixed my issue. Pretty sure I fried it leaving it on in the driveway connected to shore power with it's hatch closed in summer temps. Lasted 4 years that way come to think of it. Now we put it on surge unit multi plug typical of computers to put an off switch in easy reach. PD 1.6 cuft fridge from Keystone Trailer for reference. Looks like the PD models share a lot of parts once I finally found them. Had to search refr model, not the actual part number on the part. Hope this helps. This was an easy change, skill level 1-2 failed part change.

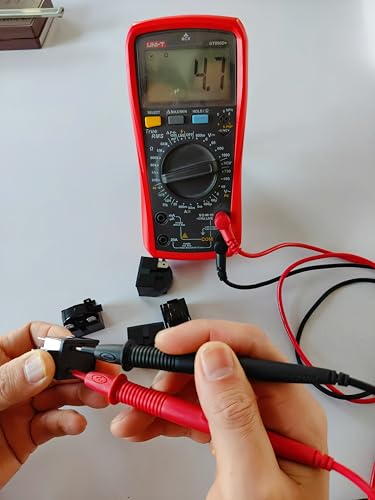

I ordered this for a vassini refrigerator that is actually a magic chef. The refrigerator stopped working after a power outage. After reading several “articles” on the cause, I thought this was the culprit. I replaced both pieces and it did not fix the problem. I tested the old and the new relay on a digital multi meter to see if the old one was bad. The new relay appears to be shorted out across all three posts whereas the old relay is not. I replaced the new with the old and still nothing. The smaller piece is only a fuse more or less and the old one was still good. I decided to dig deeper and took out the mainboard which is located in the cover at the top of the inside of the refrigerator compartment. That is where the problem was discovered. The larger relay on the board had burned out. Rather than paying 125.00 for a new board , I removed the relay and ordered a new one from yoyo electronics. Total cost including shipping was @ 7 dollars. It will take a week to get here but if it works, YAY. If not then a trip to the dump will be next. The fridge is 6 years old and truthfully I am surprised it lasted that long. I gave this 1 star due to the fact it appears the relay in the repair kit is faulty.

It functions as should so far. I’ve been using it for about a year after my old one gave out and I have not had any issues.

It worked perfectly

耐久性はあまり良くないと感じました。交換後は一時的に安定しましたが、長時間の使用では動作が不安定になることがあります。

Purchased this to fix our mini fridge that stopped working. The fridge is working now so the part fixed the issue!

Took a chance and replaced this after reviewing the options - worked, fixed my fridge!

Fonctionne super bien
